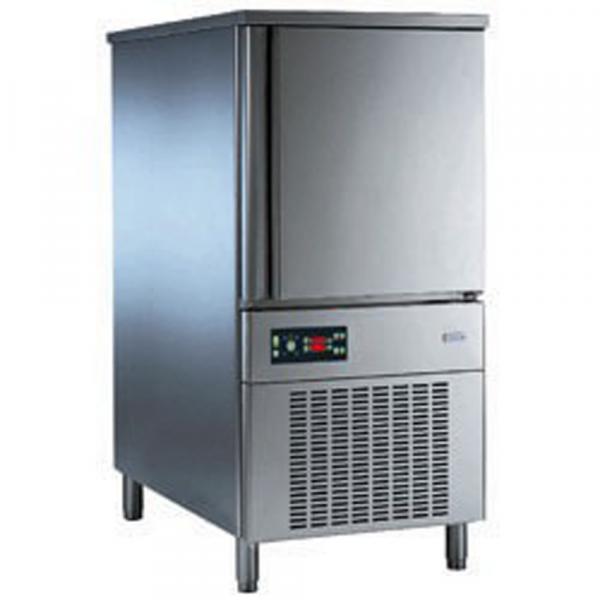

Quick cooling cells 10x GN2/1

- Capacity: 10 GN 2/1
- Production per cycle: 56 kg
- Internal and external construction in AISI 304 stainless steel.
- Monobloc structure, insulation in expanded polyurethane, CFC and HCFC free
HCFC free, thickness 60 mm.
- Two cycles; ´Soft´ for delicate products_backup_1_1, ´Hard´ fast for large
for big pieces...
- Corners and angles of the enclosure, rounded without asperities.
- Pressed bottom that collects the condensation towards the discharge.
- Easily removable plate holder structure.
- GN 2/1 slides.
- Internal dimensions: 640x825xh730 mm
- The unique design of the cabinet coupled with the fan(s) in
stainless steel AISI 304 positioned in the bottom, guarantee a homogeneity of the
homogeneity of the temperature, and prevent the drying out and the
and the formation of frost on the surface of the food.
- Reversible door, 180° opening, integrated handle.
- Automatic closing with magnetic seal, micro-switch to stop the fan when
micro switch to stop the fan when opening.
- Hermetically sealed unit (max. ambient temperature +32°), ventilated evaporator
oversized ventilated evaporator treated against coating salts.
- R134A refrigerant expansion by capillary.
- Automatic defrosting at each cycle and manual defrosting
- Safety pressure switch and thermal overheating relays
- Electronic control panel with touch-sensitive keys.
- Frontal accessibility, easy and fast for the service, composed of:
* Cycle selector
* Timer with end-of-cycle buzzer
* Control of the core probe
* Temperature hold function
- Adjustable stainless steel feet.
- The device is built in compliance with all the current CE regulations.
in force.

Accessories included:
- Loader with 50 mm pitch ´anti-tilting´.
- Core probe

N.B. : Delivered without grids
