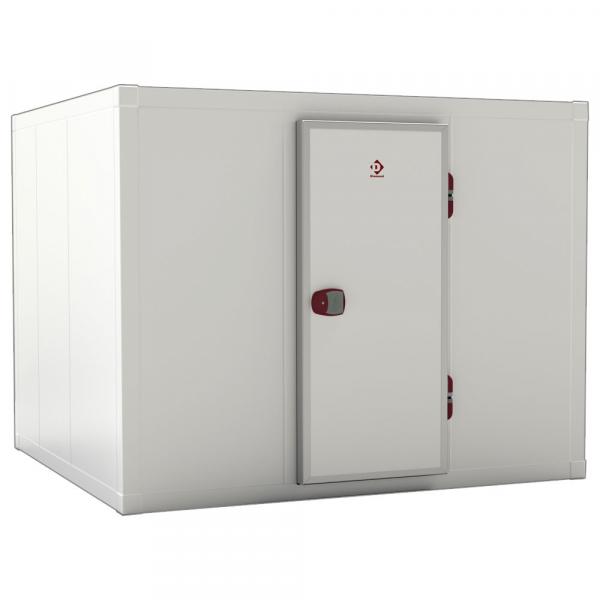

Hladna komora ISO 80, unutrašnje dimenzije 2830 x 2030 xh 2030 mm (11,66 m³)


                                        Hladna komora ISO 80, unutrašnje dimenzije 2830 x 2030 xh 2030 mm  (11,66 m³)

							Šifra: C116B/BF
Internal dimensions 2830 x 2030 xh 2030 mm.
Internal volume 11,66 m³.
Door with useful passage 800 x 1900 mm (positioning of the door at choice, on the 4 sides).
Door seal equipped with a peripheral heating cord (for negative T°).
Vacuum valve (for negative temperature).

Multipurpose chamber for positive or negative temperature, thickness of walls, floor and ceiling 80 mm, modulation with panels from 200 to 1200 mm width (200+200+200 ...).
Panels made of white lacquered galvanized steel sheet ´non-toxic and anti-scratch´.
Insulation in high density injected polyurethane (43 Kg/m3), ecological (without CFC).
Locking of the panels by incorporated ´eccentric´ hooks.
Reinforced floor in 12 mm multiplex wood, covered with a phenolic anti-slip ´honeycomb´ resin, supporting a load of 4000 kg/m² (140 Kg point load).
Peripheral corners at 90° with specific caps at the ends, also insulated with polyurethane (50 Kg/m3) avoiding any possible thermal bridge.
The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50 Kg/m3).
Swinging door thickness 80 mm also insulated with polyurethane (43 Kg/m3), with right hinges (on request, possibility of left hinges: CGC/BF), very strong, reinforced with a peripheral frame in anodized aluminum, provided with a magnetic seal in EPDM ´pressure´ (easy replacement, without tools), adjustable rising hinges and with stop at 100°, external handle with key lock, internal closing with safety device.
Panel certified in classification ´B-S3,d0´ according to the UNI EN 13501-1:2009 standard.
The equipment is built in compliance with the current CE regulations.

										Cijena: 8586.16 €

                                                     Karakteristike

                                                            Atribut

                                                            Vrijednost

                                                                        mm (W x D x H)

                                                                         2990 x 2190 x 2190

							Povezani artikli

                            Opcija: Monitor za napajanje

                                	532.40 €

                            Opcija: Pred grijači za kompresor (3/3)

                                	90.75 €

                            Opcija: Presostatički ventilator za kondenzaciju (2/3)

                                	154.88 €

                            Opcija: Presostatički drajver (4°C) sa podesivim brzinama za ventilator za kondenzaciju

                                	548.13 €

                            Opcija: Grejni električni panel (1/3)

                                	117.37 €

                            Rashladna grupa " Overlapping " T° -15°-25°

                                	2741.86 €
